商品描述

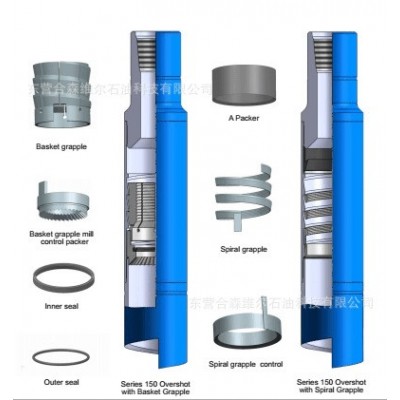

可退式卡瓦打捞筒是通过卡瓦在筒体螺旋面上运动抓捞管状落鱼外径的打捞工具。根据用途不同配有加长短节、壁勾、加大引鞋等附件。
钻井用卡瓦打捞筒技术参数
型号 Type | 外径 O.D. (mm) | 最大打捞尺寸(mm) Max size of fishing | 接头螺纹 Connection | 型号 Type | 外径 O.D. (mm) | 最大打捞尺寸(mm) Max size of fishing | 接头螺纹Connection | ||
螺瓦 Shiral slip | 篮瓦 Basket slip | 螺瓦 Shiral slip | 篮瓦 Basket slip | ||||||
TLT89 | 89 | 60 | 47.5 | NC26 | TLT200 | 200 | 159 | 140 | NC50 |
TLT92 | 92 | 76 | 66.5 | NC26 | TLT206 | 206 | 178 | 159 | NC50 |
TLT95 | 95 | 77.5 | 68 | NC26 | TLT219 | 219 | 178 | 162 | NC50 |
TLT105 | 105 | 82.5 | 70.5 | NC31 | TLT225 | 225 | 197 | 178 | NC50 |
TLT117 | 117 | 89 | 76 | NC31 | TLT232 | 232 | 203 | 187 | 6 5/8”REG |
TLT127 | 127 | 95 | 79.5 | NC38 | TLT244 | 244 | 213 | 197 | 6 5/8”REG |
TLT143 | 143 | 121 | 108 | NC38 | TLT254 | 254 | 225 | 206 | 6 5/8”REG |
TLT152 | 152 | 127 | 108 | NC38 | TLT260 | 260 | 228 | 210 | 6 5/8”REG |
TLT162 | 162 | 133.5 | 117.5 | NC50 | TLT273 | 273 | 241 | 225 | 6 5/8”REG |
TLT168 | 168 | 140 | 121 | NC50 | TLT286 | 286 | 254 | 225 | 6 5/8”REG |
TLT187 | 178 | 146 | 127 | NC50 | TLT340 | 340 | 286 | 254 | 7 5/8”REG |
TLT194 | 194 | 159 | 130 | NC50 | TLT406 | 406 | 340 | 286 | 7 5/8”REG |
修井用卡瓦打捞筒技术参数
型号 Type | 外径O.D. (mm) | 打捞范围(mm) Fishing range | 接头螺纹Connection | 型号 Type | 外径O.D. (mm) | 打捞范围(mm) Fishing range | 接头螺纹Connection | ||
螺瓦 Shiral slip | 篮瓦 Basket slip | 螺瓦 Shiral slip | 篮瓦 Basket slip | ||||||
TLT/S-48 | 95 | 48-55 | ≤48 | NC26 | TLT/S-89 | 127 | 89-95 | ≤89 | NC38 |
TLT/S-60 | 102 | 60-66 | ≤61 | 2 7/8”REG | TLT/S-102 | 140 | 101-108 | ≤102 | NC38 |
TLT/S-73 | 114 | 73-79 | ≤73 | NC31 | TLT/S-114 | 152 | 114-121 | ≤114 | NC38 |
